Camera IP EYENOR ENC-HVD7M-30R-69 | Made in UK
4MP H.265 IR IP Vandal Proof Dome camera
Overview
1/3” Progressive Scan CMOS, 2.7~12mm motorized lens, 25fps/[email protected], Smart IR, Upto 30m, 2D/3D DNR, Electronic Image Stabilization, Triple Streams,IP67, IK10
Specification
|
MODEL |
Model No. |
ENC-HVD7M-30R-69 |
|
|
Type |
4MP H.265 IR IP Vandal Proof Dome camera |
||
|
CAMERA |
Image Sensor |
1/3″,Progressive scan, 2.0 Megapixel, CMOS |
|
|
Lens |
2.7~12 mm Motorized lens |
||
|
Angle of View (H) |
100° ~ 30° |
||
|
Shutter |
Auto/Manual, 1/5~1/20000 s |
||
|
Min. Illumination |
Color: 0.05Lux @F1.2 |
||
|
AGC |
Auto/Manual |
||
|
Day/Night |
IR-Cut filter with auto switch (ICR) |
||
|
Digital noise reduction |
2D/3D DNR |
||
|
S/N |
>55dB |
||
|
Smart IR |
Up to 30M |
||
|
Defog |
Digital Defog |
||
|
WDR |
120dB |
||
|
VIDEO
|
Max Resolution |
2592 x 1520 |
|
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
||
|
Frame Rate |
Main Stream: : 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps |
||
|
Streaming Capability |
Triple Stream |
||
|
ROI |
Supported |
||
|
HLC/BLC |
Supported |
||
|
Privacy Mask |
Supported |
||
|
Motion Detection |
Supported |
||
| Audio Detection | G.711U/G.711A | ||
|
SMART |
Behavior Detection |
Perimeter, Single Virtual Fences, Double Virtual Fences |
|
|
Intelligent Identification |
Loiter, Multi Loiter, Missing Object, Abandoned Object |
||
|
Statistical Analysis |
Abnormal Speed, Converse, Illegal Parking, Signal Bad |
||
|
INTERFACE
|
Protocols |
IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
|
|
Compatibility |
ONVIF (Profile S,G) |
||
| CVBS Output | Supported | ||
| RS485 | Supported | ||
|
Network |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
||
| Audio I/O | 1/1 | ||
| Alarm I/O | 1/1 | ||
|
NETWORK |
Power |
DC12V/AC24V/POE (IEEE 802.3af) |
|
|
Power Consumption |
Max 7W |
||
|
Edge Storage |
MicroSD, up to 128GB |
||
|
Reset Button |
Supported | ||
|
Working Environment |
-40°C ~ 60°C Humidity: 90% RH | ||
|
Ingress Protection |
IP67 |
||
|
Vandal Resistant |
IK10 |
||
|

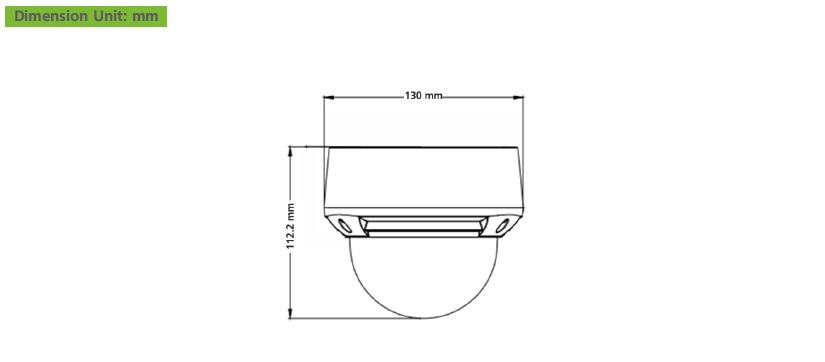

Dimensions |
130x130x112mm |
||
|
Weight |
0.9Kg |
||
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENC-HVD7M-30R-69 |
4MP H.265 IR IP Vandal Proof Dome camera with 2.7 to 12mm Motorized lens, WDR, POE, SD card Slot, Analytic features and 30m IR Support |
1 |
Downloads
| Datasheet | 582.23KB | DOWNLOAD |
