Camera IP EYENOR ENV-HCB8F-30R-17 | Made in UK

Model No.

ENV-HCB8F-30R-17

Type

5MP IR IP H.265 Compact Bullet Camera

Image Sensor

1/2.7″, 5.0 Megapixel, Progressive scan, CMOS

CAMERA

Lens

4.0mm

Angle of View(H)

79.7°

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Color: 0.01Lu×(F2.0, AGC ON), 0 Lux with IR on

IR Range

Up to 30M IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

WDR

DWDR

Noise Reduction

2D/3D

VIDEO

Max. Resolution

2592×1944

Video Compression

Ultra 265,H.265, H.264, MJPEG

Frame Rate

Main Stream:5MP (2592*1944): Max. 20fps;

Sub Stream: 720P (1280*720): Max. 30 fps;

Video Streaming

Triple

OSD

Up to 4 OSDs

ROI

Up to 2 OSDs

BLC

Supported

HLC

Supported

Corridor Mode

Supported

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

NETWORK

Protocol

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatibility

ONVIF, API

Network

10M/100M Base-TX Ethernet

GENERAL

Power

12 V DC±25%,PoE (IEEE802.3 af)

Power consumption: Max 4W

Ingress Protection

IP67

Working Environment

-30°C ~ +60°C, Humidity :10%~95% RH(Non-condensing)

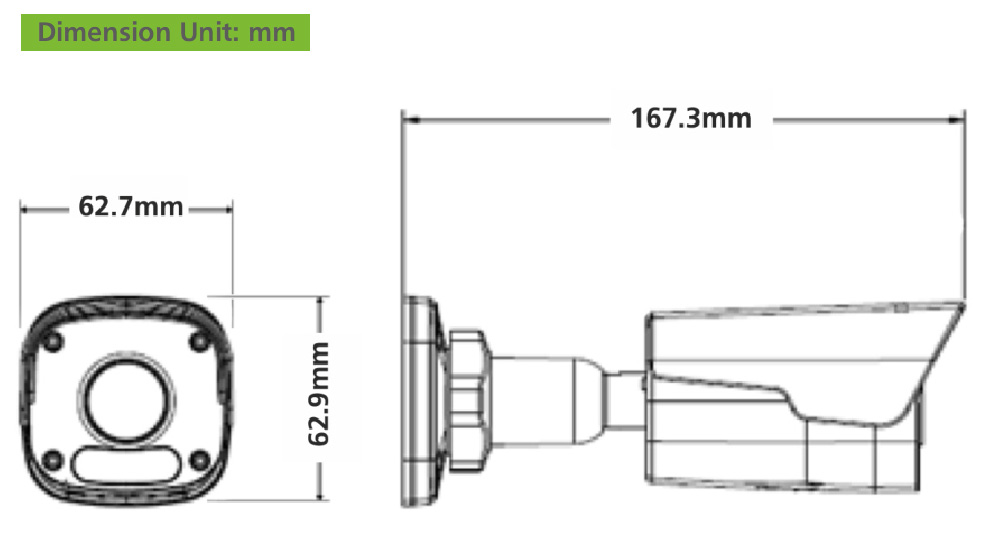

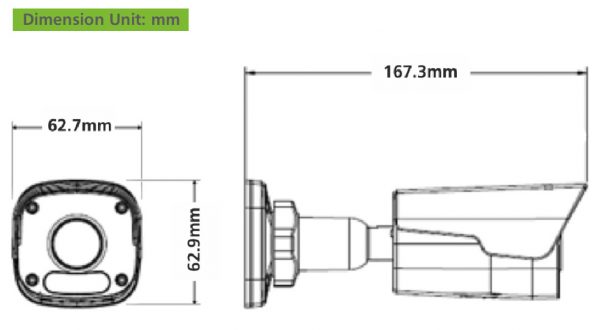

Dimensions

167.3×62.9×62.7 mm

Weight

0.37kg
