NAS Synology DS416slim

Mã sản phẩm: DS416slim

Mô tả: Small size, huge possibilities.

Xuất xứ: Taiwan

Bảo hành: 12 tháng

Mã: DS416slim Danh mục: NAS Synology Từ khóa: DS416slim, OverView, Specifications

Mô tả
Sản phẩm liên quan

DiskStation DS416slim

OVerView

DS416slim is a 4-bay NAS server for 2.5″ drives, aimed at home users and professionals in need of a compact, power-saving, easily transportable storage solution. Accommodating up to four disks, it provides all essential services to increase productivity at work or serve as a comprehensive media center solution.

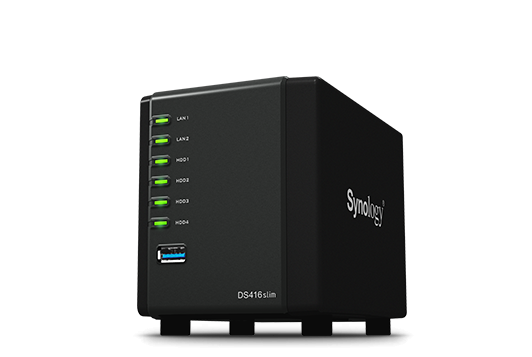

top-20

DS416slim boasts a dual-core CPU with a dedicated encryption engine and 512MB of DDR3 RAM. With link aggregation enabled, DS416slim delivers up to 194.21 MB/s in reading and 77.91 MB/s in writing. Reading through a single Gigabit LAN speed goes up to 112.14 MB/s.

Specifications

Hardware Specifications
CPU
CPU Model	Marvell Armada 385 88F6820
CPU Architecture	32-bit
CPU Frequency	Dual Core 1.0 GHz
Floating Point
Hardware Encryption Engine
Memory
System Memory	512 MB DDR3
Storage
Drive Bay(s)	4
Compatible Drive Type )	2.5″ SATA III / SATA II HDD (Up to 12.5mm drive height) 2.5″ SATA III / SATA II SSD
Maximum Internal Raw Capacity	8 TB (2 TB HDD x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size	16 TB
Hot Swappable Drive
External Ports
USB 3.0 Port	2
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+ (Read Only, with max. volume size 2TB)
Appearance
Size (Height x Width x Depth)	120 mm x 105 mm x 142 mm
Weight	0.66 kg
Others
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
Wake on LAN/WAN
System Fan	60 mm x 60 mm x 1 pcs
Fan Speed Mode	Cool Mode Quiet Mode Low-power Mode
Easy Replacement System Fan
Wireless Support (dongle)
Brightness adjustable front LED indicators
Power Recovery
Noise Level*	20.3 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter	30W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	17.17 W (Access) 11.63 W (HDD Hibernation)
British Thermal Unit	58.63 BTU/hr (Access) 39.71 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B
Warranty	2 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10JFCX hard drive(s). Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.
DSM Specifications
Storage Management
Maximum Internal Volume Number	256
Maximum iSCSI Target Number	10
Maximum iSCSI LUN	10
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID RAID 5 JBOD
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
File Sharing Capacity
Maximum User Accounts	2048
Maximum Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	2
Maximum Concurrent CIFS/AFP/FTP Connections	128
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Log Center
Syslog Events per Second	100
Add-on Packages
Cloud Station Server
Maximum Concurrent File Transfers	128
Download Station
Maximum Concurrent Download Tasks	30
Media Server
DLNA Certification
PDF Viewer
SpreadSheet
Maximum Simultaneous Editing Users	35
Surveillance Station
Maximum IP cam (Licenses required)	8 (including 2 Free License)
Total FPS (H.264)*	300 FPS @ 720p (1280×720) 150 FPS @ 1080p (1920×1080) 100 FPS @ 3M (2048×1536) 40 FPS @ 5M (2591×1944)
Total FPS (MJPEG)*	150 FPS @ 720p (1280×720) 75 FPS @ 1080p (1920×1080) 50 FPS @ 3M (2048×1536) 25 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding	Group 2
VPN Server
Maximum Connections	5
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 2
Optional Accessories	Camera License Pack VS360HD
