Camera IP EYENOR ENC-HBU8M-100R-25 | Made in UK

MODEL

Model No.

ENC-HBU8M-100R-25

Type

5MP Explosion Proof Starlight IR IP H.265 Bullet Camera

CAMERA

Image Sensor

1/2.7″, Progressive scan, 5.0Megapixel, CMOS

Lens

2.7-13.5mm (Motorized lens)

Angle of View (H)

93.38°~ 28.56°

Minimum Illumination

Colour: 0.002Lux @F1.2
BW: 0Lux with IR on

AGC

Auto/Manual

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

Digital Noise Reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 100m

Day/Night

IR-Cut filter with auto switch (ICR)

Defog

Digital Defog

WDR

120dB

VIDEO

Max. Resolution

2592 x1944

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:5MP(2592 x 1944): Max.20 fps, 5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,
3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps; Third Stream:D1(720 x 765): Max.30 fps

Video Streaming

Triple

Corridor Mode

Supported

ROI

Upto 8 areas

HLC/BLC

Supported

Privacy Masking

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Teo way Audio

Supported

SMART

Behaviour Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Audio detection, Defocus, Scene change, Missing object, Abandoned object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection,
RTSP Authentication, User Authentication

INTERFACE

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

 RJ45 10M/100M Base-TX Ethernet

 Audio I/O

 1/1

 Alarm I/O

 1/1

GENERAL

Power

AC100-240V, AC24V, PoE

Power Consumption: 15W/25W (with thermostat)

Operating Temperature

-20°C ~ +60°C, Humidity: ≤95% RH (non-condensing)

Atmospheric Pressure

80KPa ~ 106Kpa

Window Glass

Strong tempered glass

Storage

Micro SD card slot, Up to 256 GB

ANR

Supported

Wiper System

Optional (Controlled by RS485)

Sunshade

Optional

Surge Protection

TVS6000V (Optional)

Fibre Output

Multimode/Singlemode (Optional)

Ingress Protection

IP68

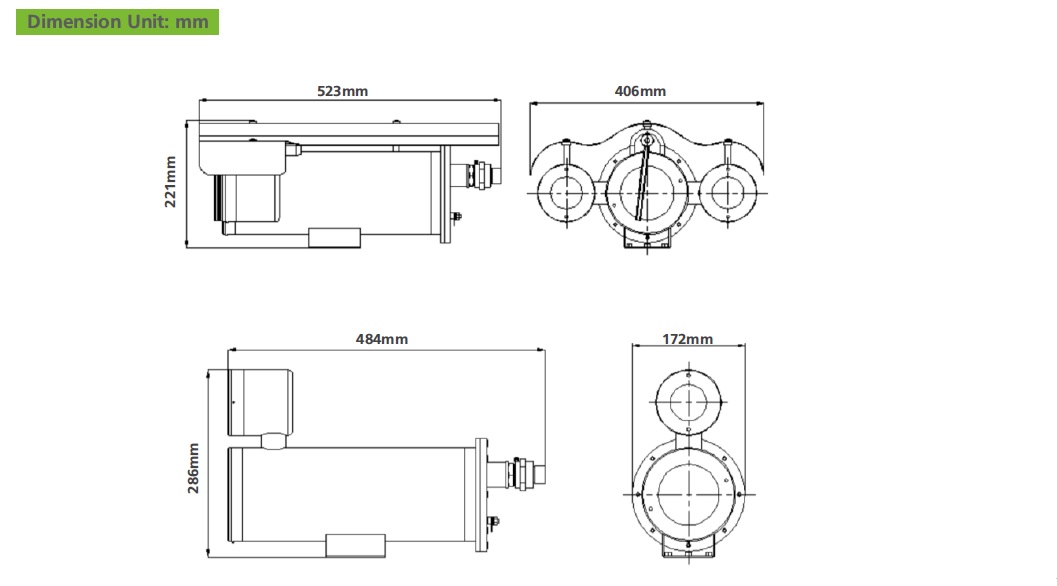

Dimensions

523x406x221mm (with wiper), 484x172x286mm (without wiper)

Weight

17.5Kg (with wiper), 13Kg (without wiper)
