Camera IP EYENOR ENC-HDO8M-30R-20 | Made in UK

MODEL

Model No.

ENC-HDO8M-30R-20

Type

5MP Starlight IP H.265 Dome Camera

Image Sensor

1/2.7″, Progressive scan, 5.0 Megapixel, CMOS

CAMERA

Lens

2.7~13.5 mm (Motorized Lens)

Angle of View (H)

93.38° ~ 28.56°(H)

Shutter

Auto/Manual, shutter time: 1~1/100000 s

Min. Illumination

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

Defog

Digital Defog

IR Range

Up to 30M

WDR

120dB

VIDEO

 Max. Resolution

 2592 x 1944

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25 fps(WDR OFF),4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;

Corridor Mode

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

G.711U/G.711A

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Intelligent Identification

Face detection, Audio detection, Defocus, Scene Change, Missing Object, Abandoned Object

Statistical Analysis

People counting

NETWORK

Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

INTERFACE

 Network

RJ45 10M/100M Base-TX Ethernet

Built-in mic

Supported

 GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max 8.16W

Operating Temperature

-40°C ~ 60°C, Humidity ≤95% RH (Non-condensing)

 Storage

 Micro SD, up to 256GB

 Network Storage

 ANR

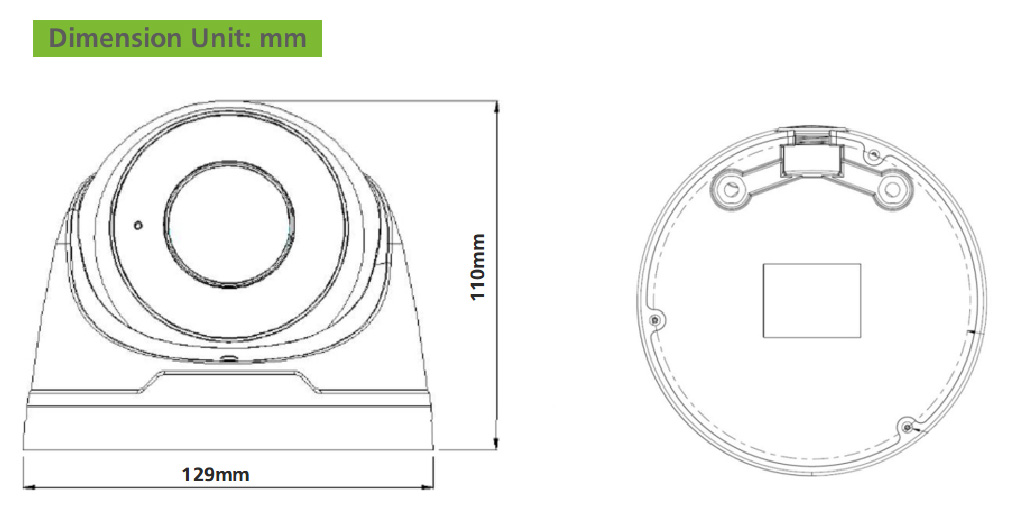

 Dimensions

 129x129x110mm

 Weight

 0.82Kg

 Ingress Protection

 IP67

 Reset Button

 Supported
