Đầu ghi NVR EYENOR ENR-02010-N-EPK | Made in UK

MODEL

Model No.

ENR-02010-N-EPK

Type

10Ch Embedded Network Video Recorder

SYSTEM

IP Camera Input

10 Channel

Two-way Talk

1Ch, 3.5mm

Interface

1 HD-OUT, 1 VGA

DISPLAY

Resolution

HDMI: 1-Ch, 3840×2160, 2560x 1600, 2560 x1440, 1920×1080, 1280×720, 800 x600, 1024×768, 1366 x768,
1440×900, 1280×800
VGA: 1-Ch, 1920x 1080, 1280×720, 800 x600,1024×768, 1366×768, 1440×900, 1280×800

Multi-screen Display

1/3/4/6/8/9/10

Video Compression

H.265+, H.265, H.264

RECORDING

Resolution

8MP/6MP/SMP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Record Rate

160Mbps

Preview Capability

1x4K, 1xSMP, 2x4MP, 4x1080P, 8x720P, 10x4CIF

Synchronous Playback

1x4K, 1xSMP, 2x4MP, 4x1080P, 8x720P

Records Encryption

Yes

INTRFACE

Network Interface

1xRJ45 self-adaptive 10/100 Mbps network interface

USB

2xUSB 2.0

 Audio I/O

 1/1

Alarm I/O

0/1

PoE Interface

8xRJ45 self-adaptive 10/100 Mbps network interface

PoE MAx Power

30W

Max Current per PoE Port

600mA

HDD

SATA

2 SATA interfaces for 2 HDDs

Capacity

Up to 10TB for each HDD

GENERAL

 Power

AC100-240V, 50~60 Hz

Power Consumption

≤25W (without HDD

 Working Environment

-10 °C ~ 55 °C, Humidity: < 90% RH

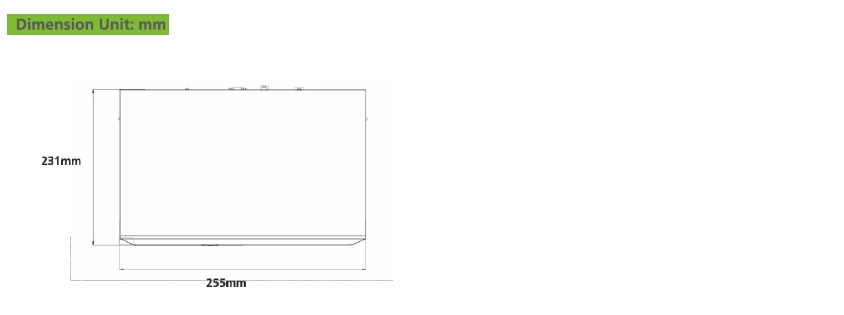

Dimensions

 45.1x255x231 mm

Weight

 2.85Kg
