Đầu ghi NVR EYENOR ENR-08064-N-IRK | Made in UK

MODEL

Model No.

ENR-08064-N-IRK

Type

64Ch Embedded Network Video Recorder

SYSTEM

Main Processor

Quad-core Embedded Processor

Operating System

Embedded LINUX

DISPLAY

Interface

HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1280×1024 /60Hz,1280×720 /60Hz, 1024×768 /60Hz

CVBS Output

1-Ch, BNC

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

RECORDING

Compression

H.265+/H.265/H.264/MJPEG/MPEG4

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Incoming/Outgoing Bandwidth

320Mbps/320Mbps

Synchronous Playback

16Ch

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Decoding Capability

3 x [email protected], 4 x [email protected], 8 x [email protected], 16 x [email protected], 32 x [email protected], 36 x [email protected], 64 x D1

VIDEO DETECTION & ALARM

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Smart Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

Alarm Input

16 Ch

Relay Output

4 Ch

Tracking Trigger Event

Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.

Audio

1-Ch, RCA

VCA Search

Face search, Behaviour search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network/Internal SATA burner/eSATA Device

Interface

2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

NETWORK

Serial Interface

1 x RS232, 1 x RS485

Max. User Access

128 Users

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, UPnP
IP Search, P2P

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF profile(S/G)

STORAGE

Internal HDD

8 SATA Ports, Up to 10TB capacity for each HDD

HDD Mode

Single, Raid 0/1/5/6/10

eSATA

1 eSATA port

USB

Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0

GENERAL

Power Supply

Single, AC 100~240V, 50/60 Hz

Power Consumption

<20 W (without HDD)

Operating Conditions

-10ºC ~ +55ºC (Non-condensing)

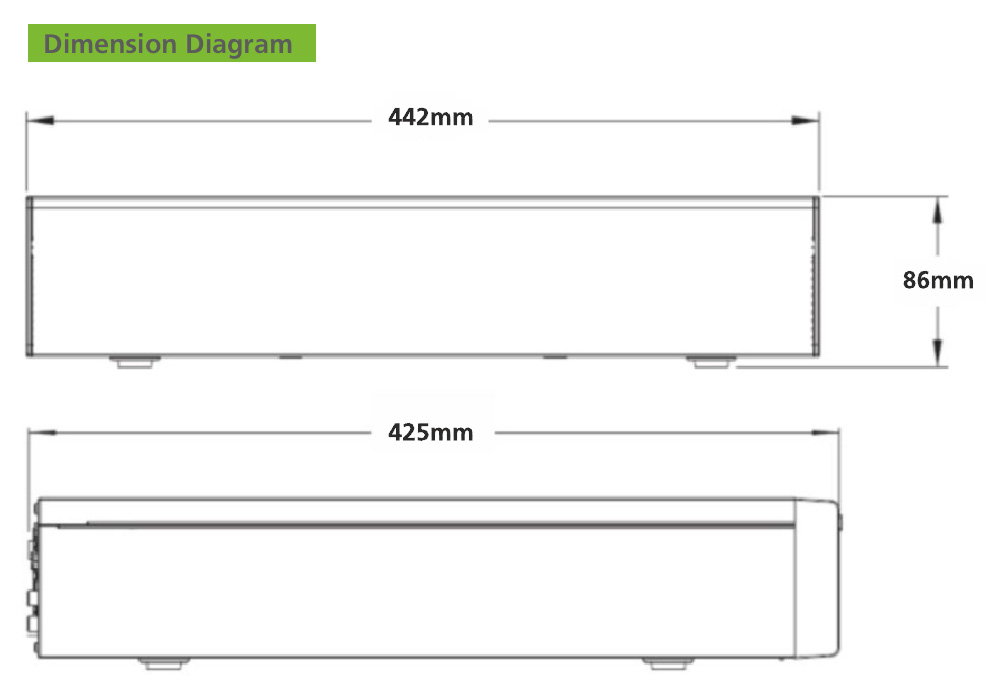

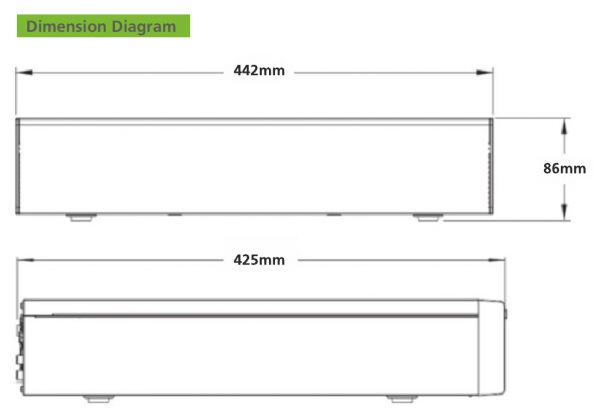

Dimension(W× D× H)

442×425×86mm

Weight

5.13 Kg
