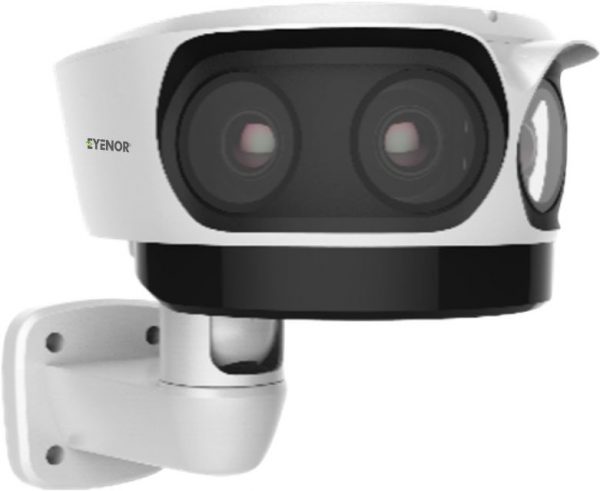

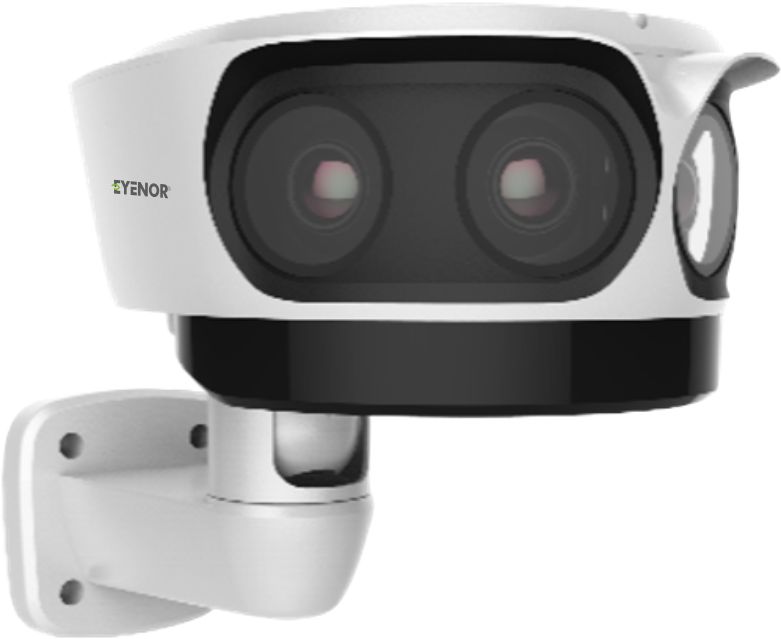

Camera IP EYENOR ENC-HDO5Q-50R-13 | Made in UK

MODEL

Model No.

ENC-HDO5Q-50R-13

Type

4x2MP H.265 Multi-sensor Panoramic IR IP Camera

Image Sensor

1/1.8″ progressive scan, 2.0 megapixel, CMOS*4

CAMERA

Lens

4×4.2mm lens

Angle of View (H)

180°

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.002lux @(F1.8) 0lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 50m

WDR

120dB

Defog

Digital Defog

VIDEO & AUDIO

Max. Resolution

4096 x 1800

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4096×1800:Max. 30 fps;
Sub Stream: 1920×832:Max. 30 fps;
Third Stream: 1280×560: Max. 30 fps

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

 G7.11U/G7.11A

Two-way Audio

 Supported

Audio I/O

 1/1

Alarm I/O

 2/1

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection, Loitering Detection, Fast moving, Personnel gathering, Parking detection, Legacy of goods

Exception Detection

 Audio Detection

Intelligent Identification

Face detection, Missing Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection,RTSP Authentication, User Authentication

NETWORK

Network Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

1 100M/1000M Base-FX SFP + 2 10M/100M/1000M Base-TX Ethernet

GENERAL

Storage

Micro SD, Up to 256 GB

Network Storage

ANR

Power

AC 24V/DC 24V±25%

Power consumption: 40W

Working Environment

-40°C ~ 70°C, Humidity ≤ 95% RH (Non-condensing)

Ingress Protection

IP67

Reset Button

Supported

Dimensions

259 x 211 x 132mm

Weight

2.5Kg
